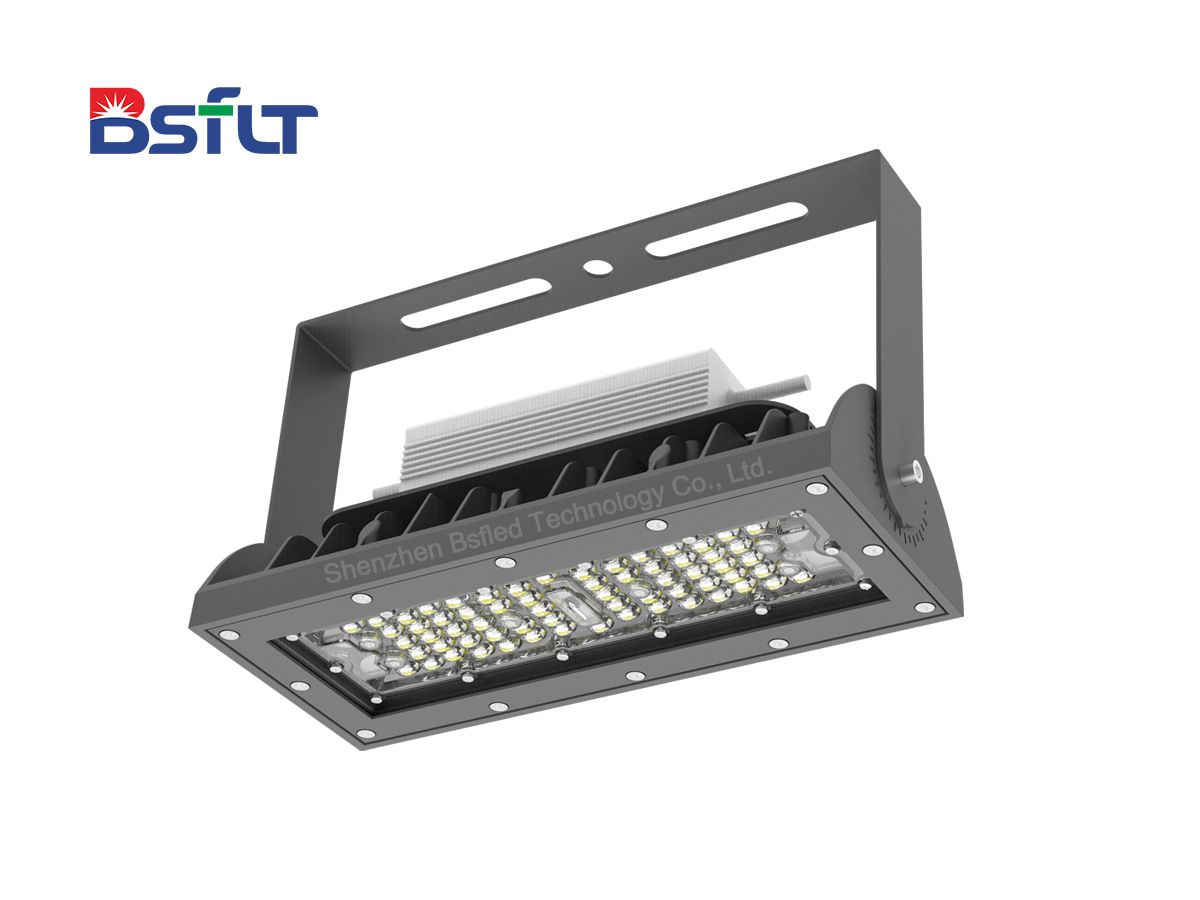

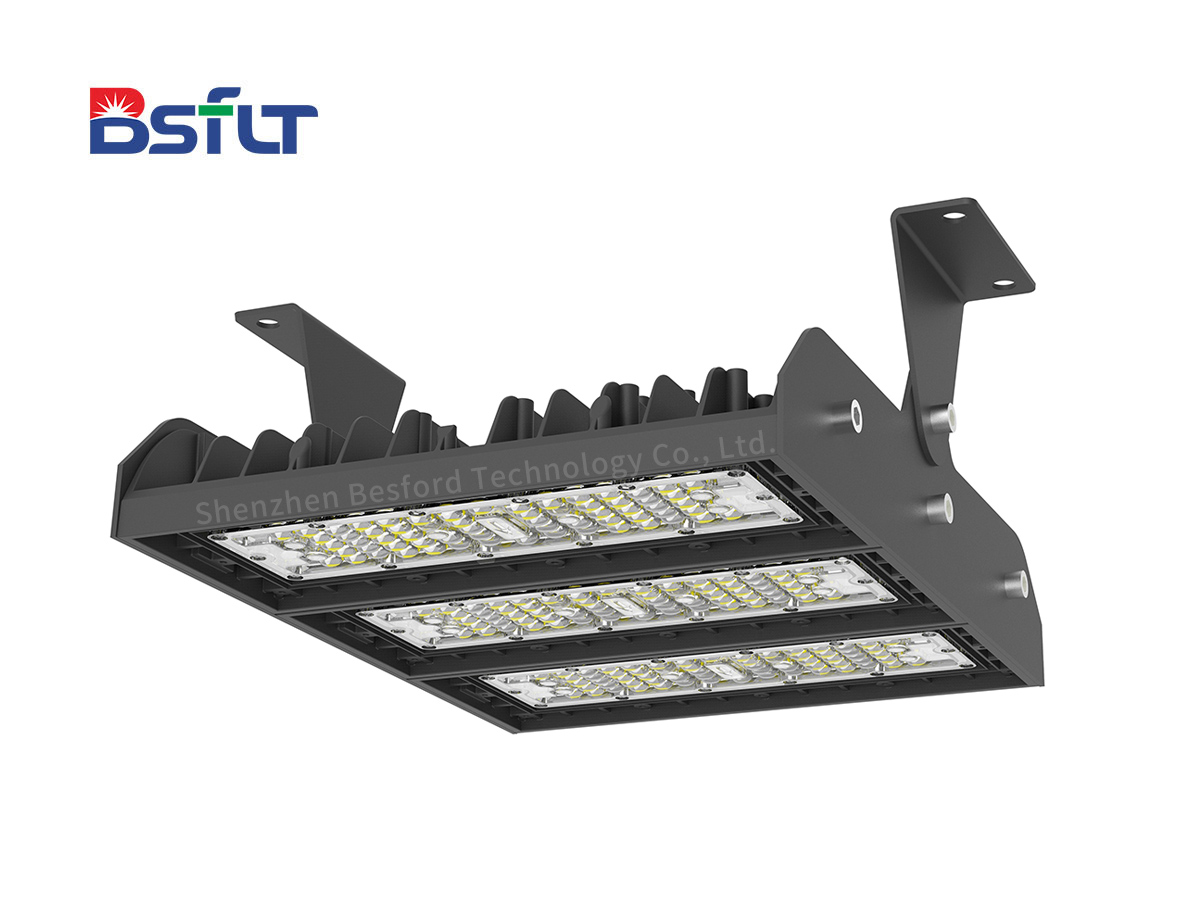

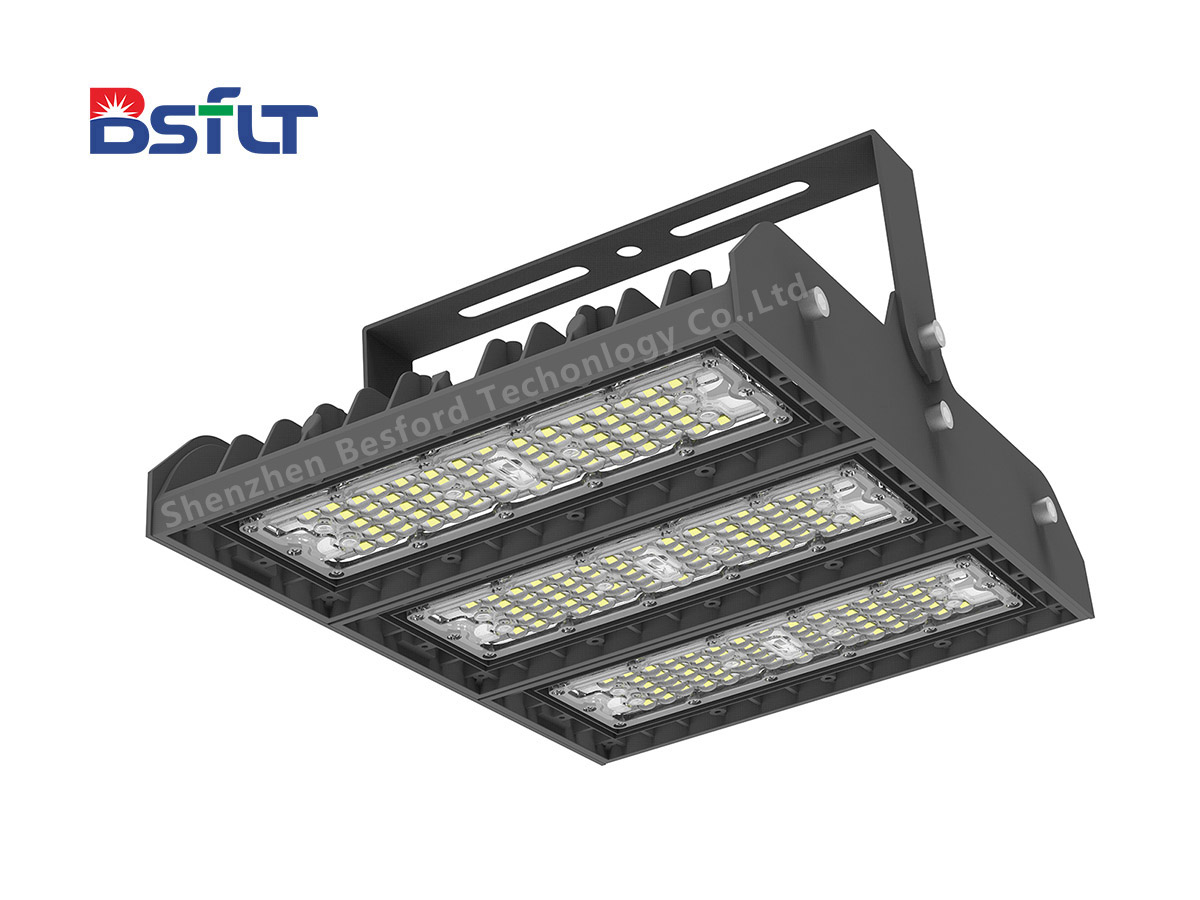

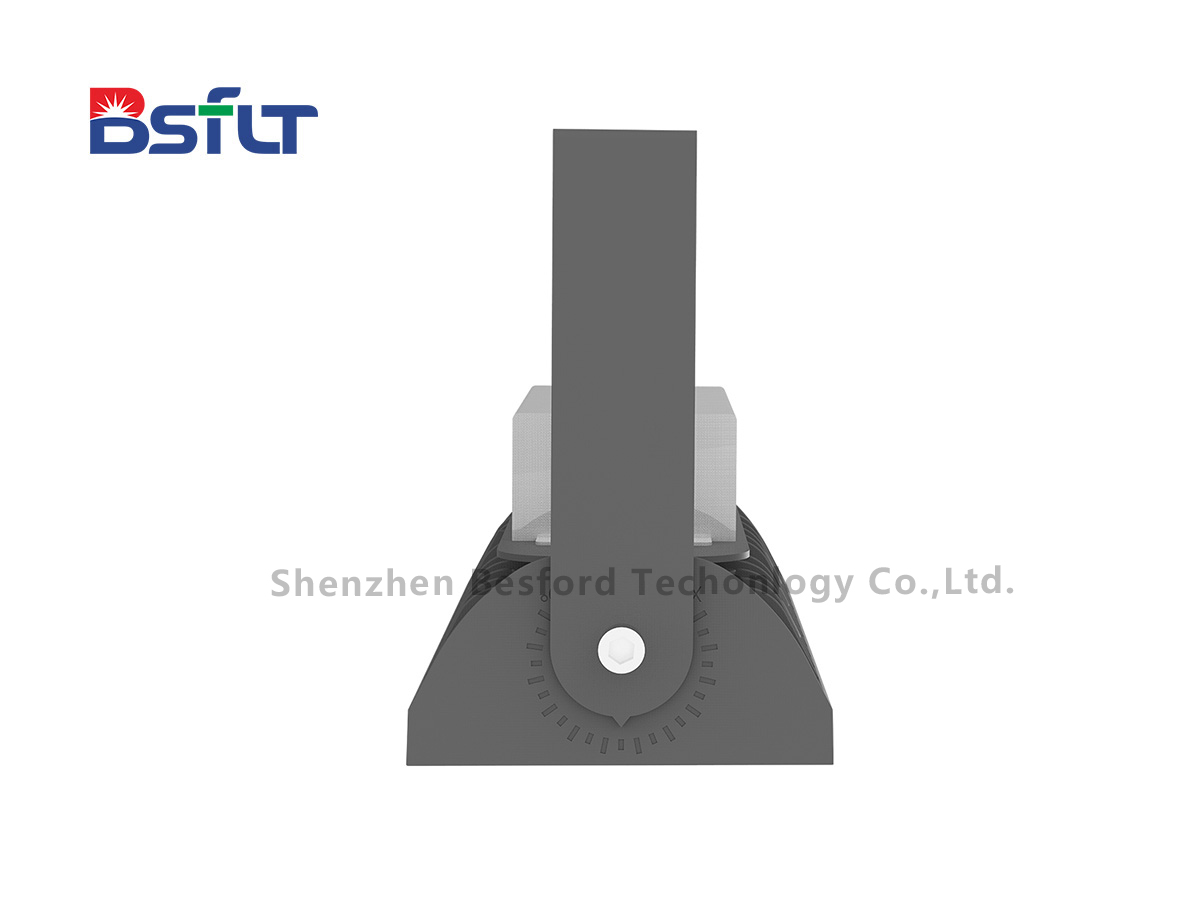

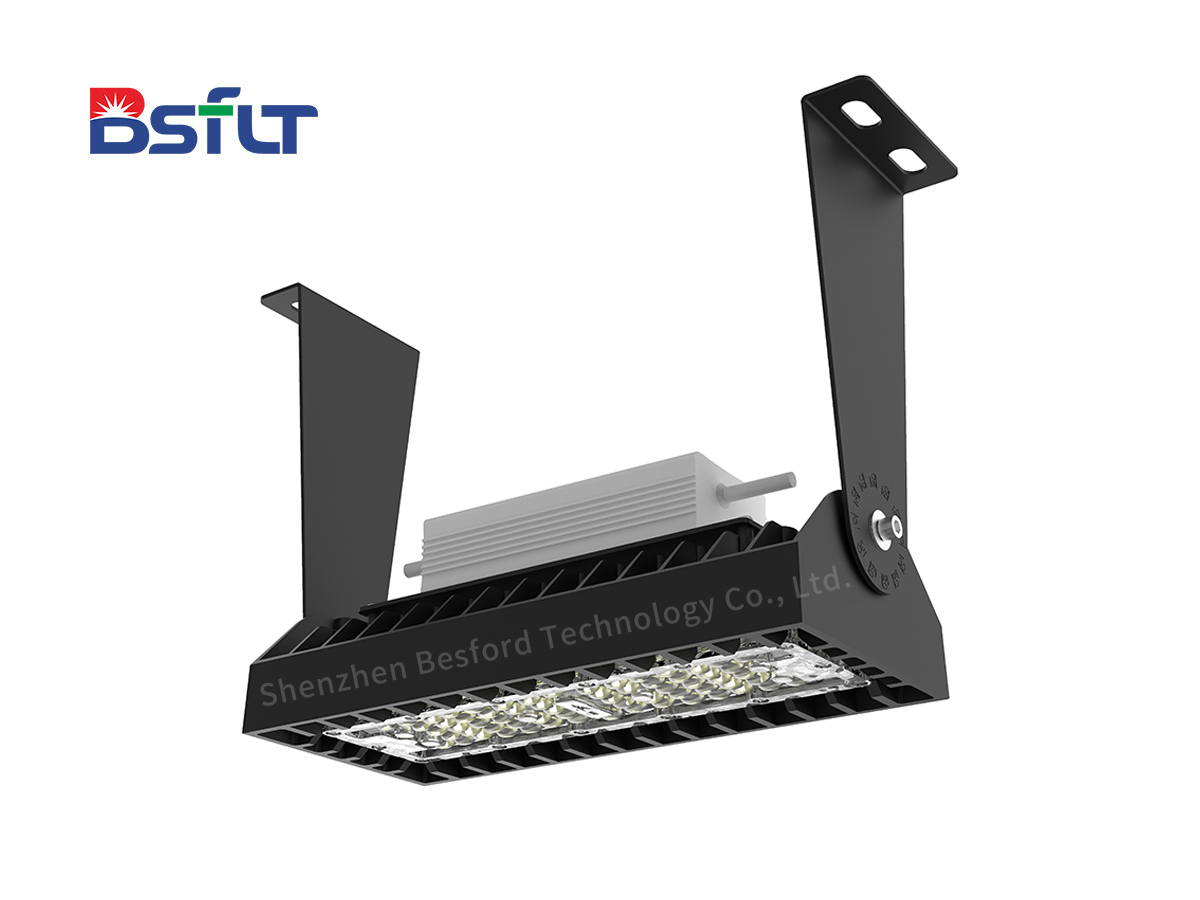

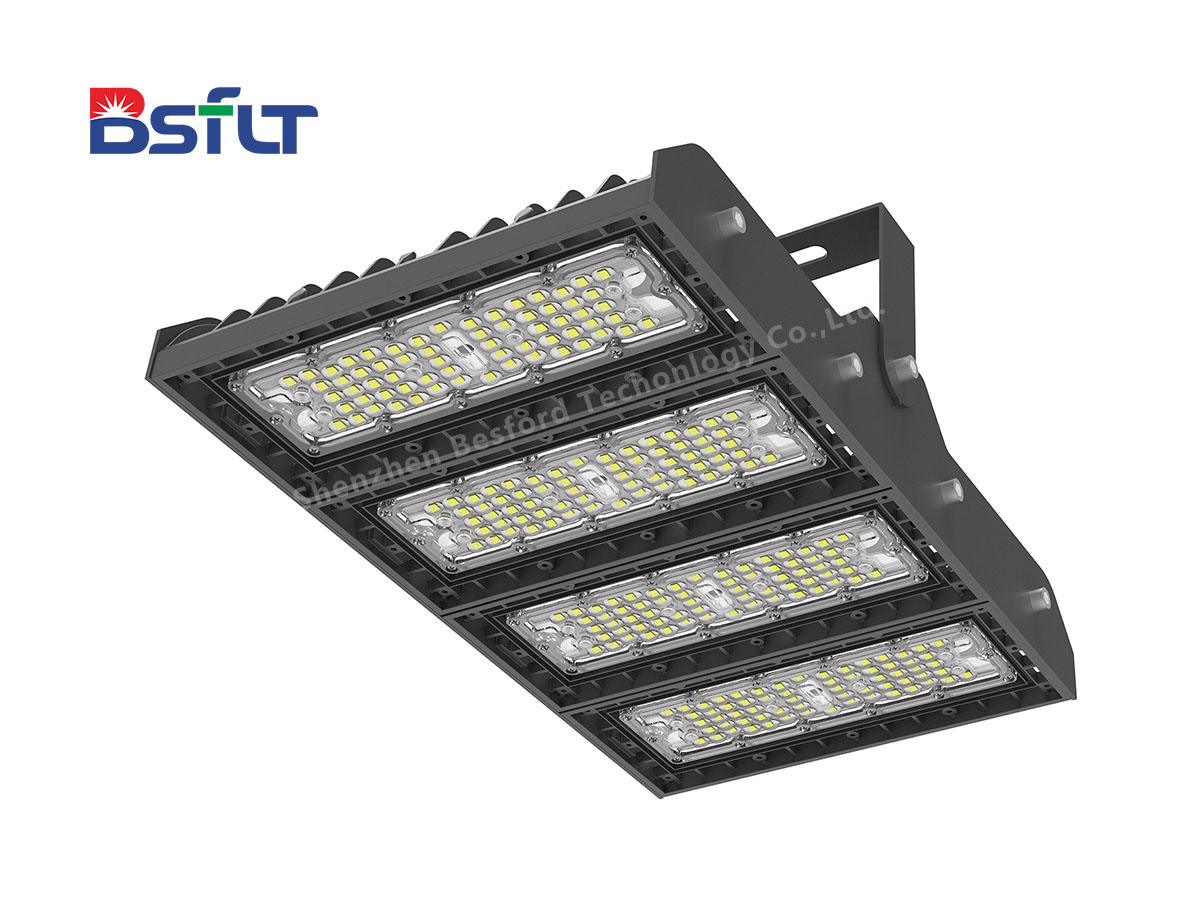

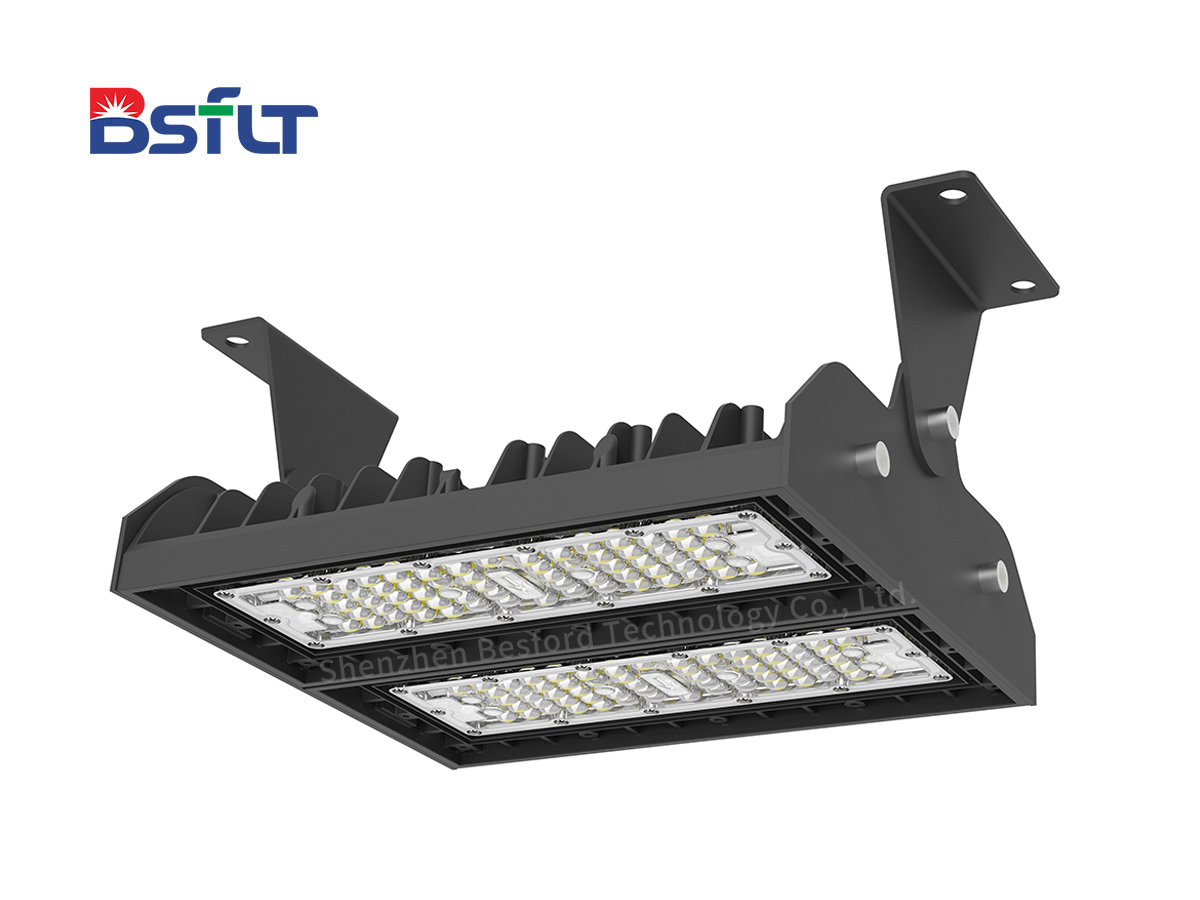

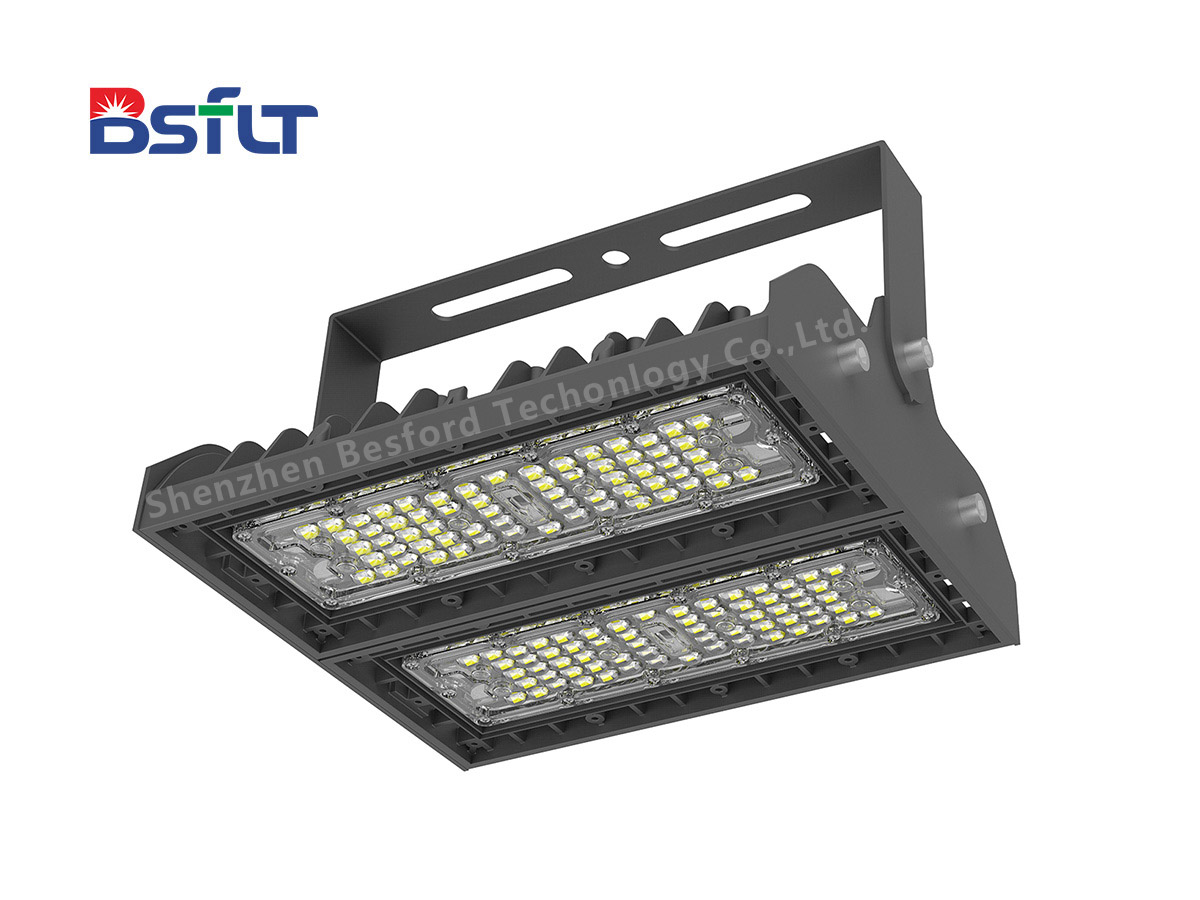

BTU1303 series tunnel lights use high-quality SMD LED as light source, modular design, easy to update and maintain. Independent external waterproof power supply, which can be disassembled and replaced by hand. The waterproof design of the overall structure ensures the reliability of the comprehensive performance of the product such as heat dissipation, waterproof and impact. After the product is installed, it has a rotating scale, which can directly adjust the best angle of irradiation required, which is convenient for construction and debugging.
*High-quality ADC12 one-piece die-casting process, anti-corrosion, strong impact resistance
*PC integrated waterproof lens, high light transmittance, anti-glare, durable
*Optional tempered glass, high light transmission, not afraid of dust, exhaust pollution, clean and waterproof
*Using fin type radiator, full air heat convection design, excellent heat dissipation performance

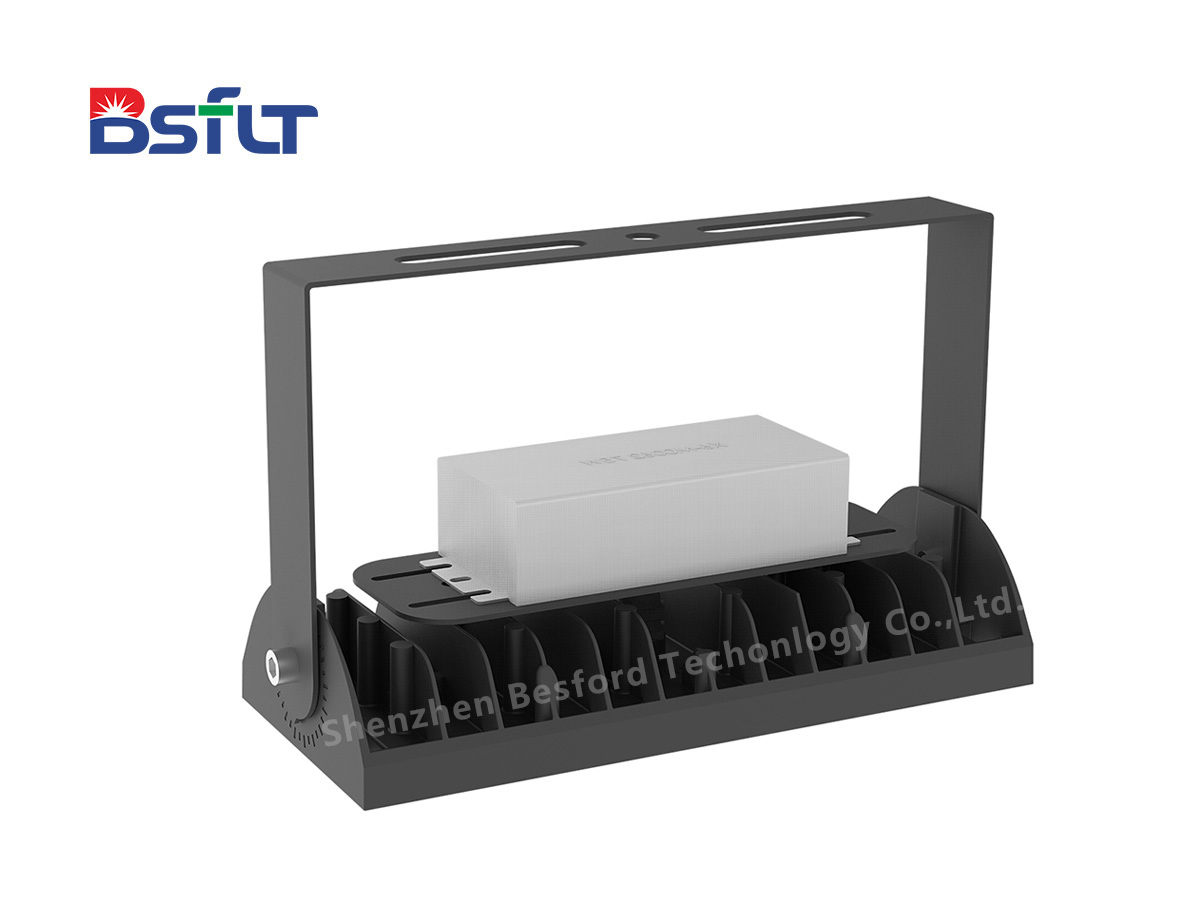

*The power supply can be replaced by hand, which is convenient for installation and maintenance
*A heat dissipation partition is added between the modules, and the hollow design increases air convection heat dissipation
*Work ambient temperature -40℃-+55℃
*CB/CE/RoHS rules adopted
*Anti-electric Shock grade: I
*Corrosion Proof Grade: W
| Item | Power | 40W | 50W | 60W | 100W | 120W | 150W | 180w | 200W | 240W |
| General Performance | Efficiency | 120-160lm/W | ||||||||
| CCT | 3000K/4000K/5000K | |||||||||
| IP-Rating | IP65(wet location with Phtocell) | |||||||||
LED Brand | SMD3030 PHILIS/ SEOUL/CREE | |||||||||
| Driver Brand | PHILIS/MOSO/INVENTR/JUSON | |||||||||
| Housing Material | ADC12 | |||||||||
| Qualification | Lifespan | 50000H | ||||||||
| Warranty | 5 Years Warranty | |||||||||
Widely used in tunnel,flyover,culvert,warehouse,construction site,etc.
