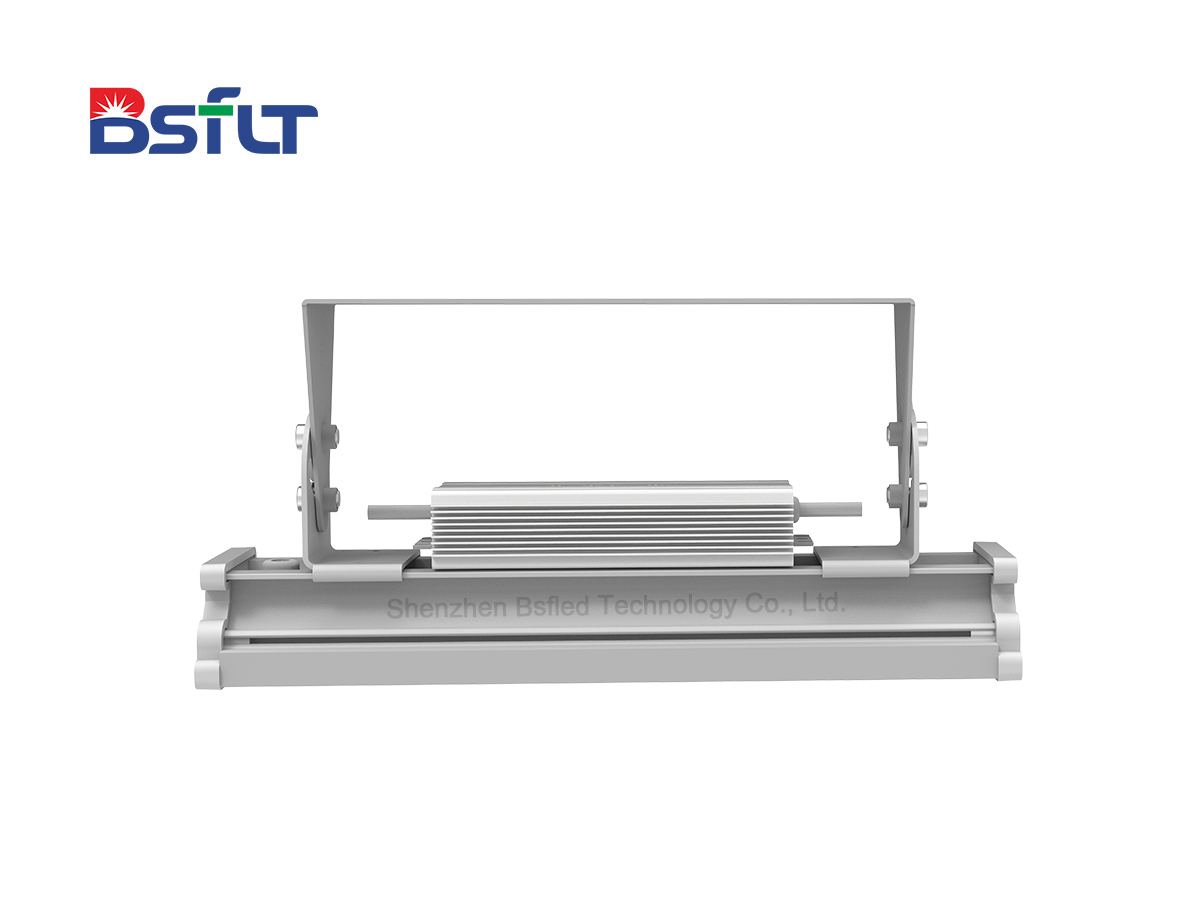

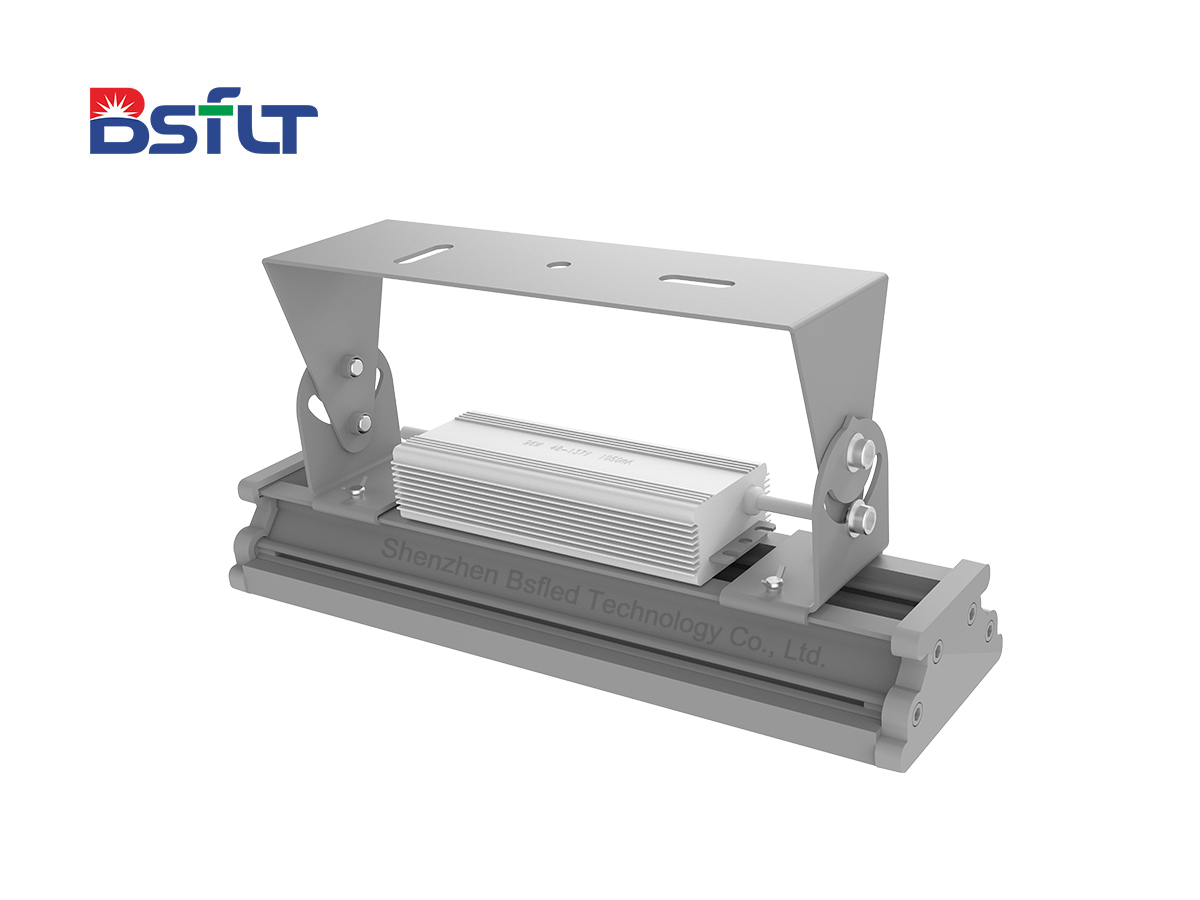

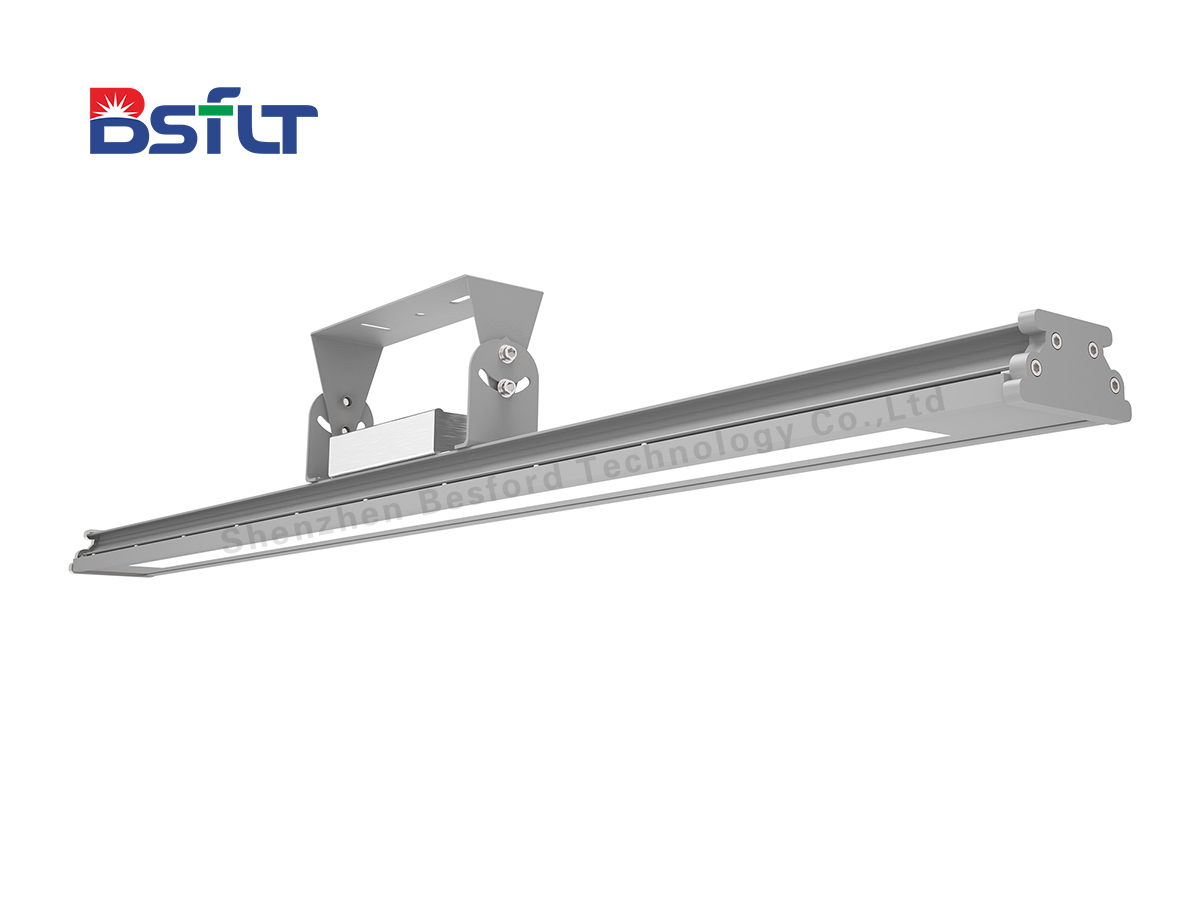

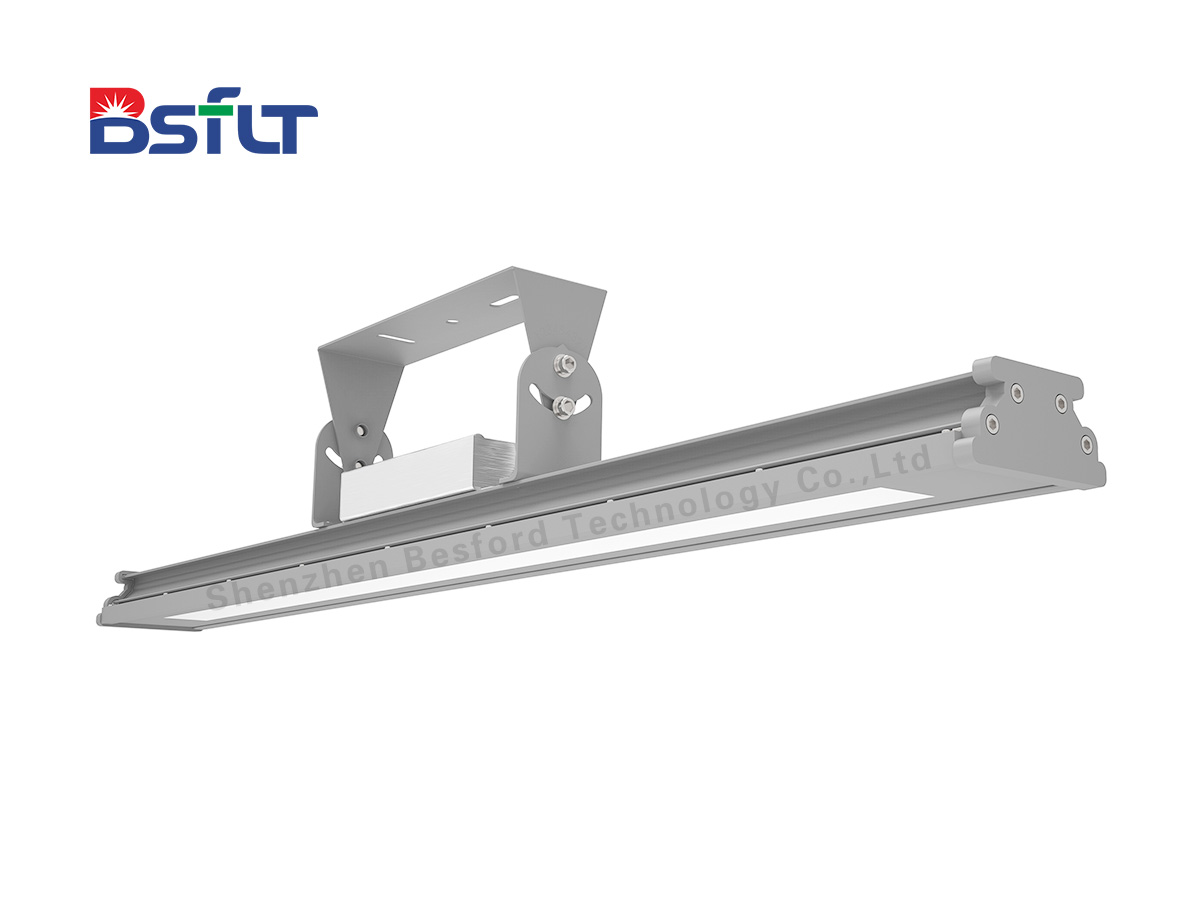

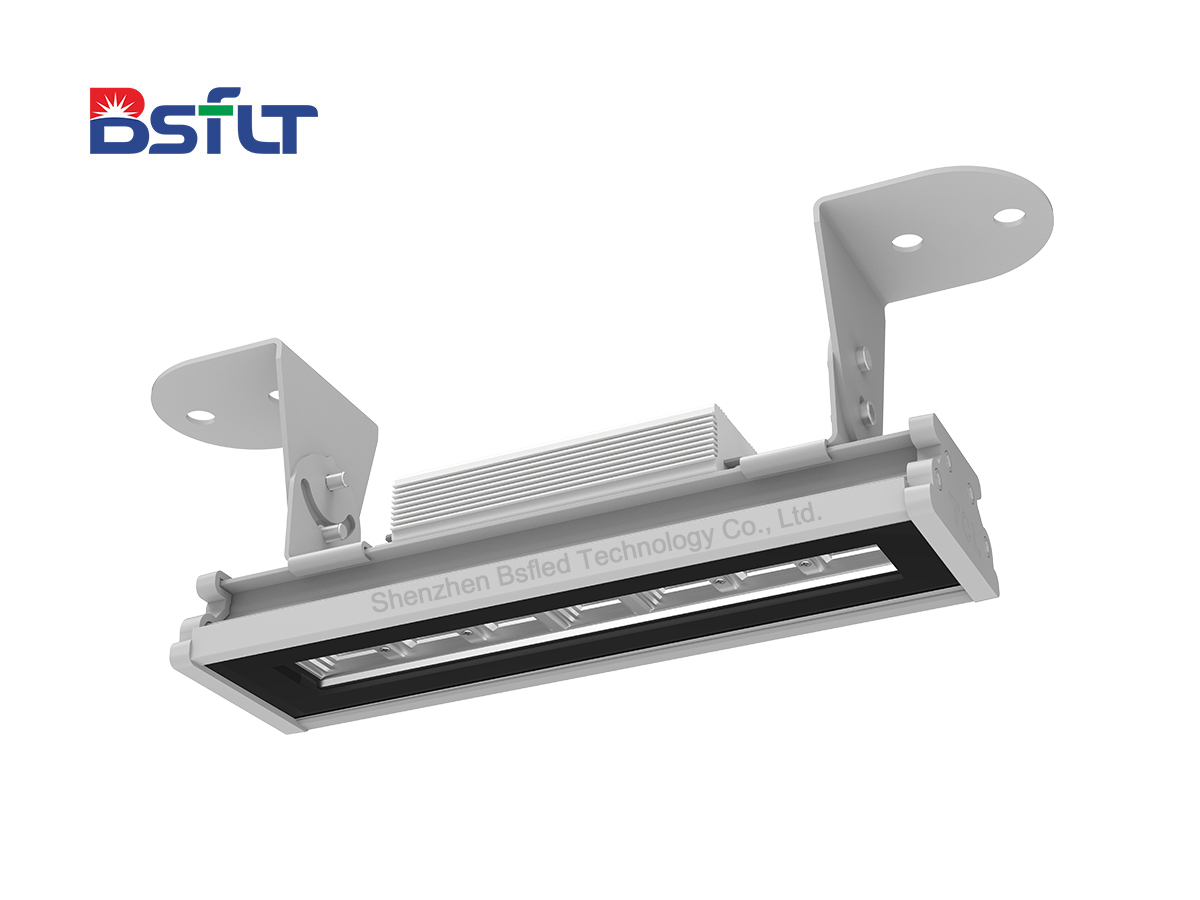

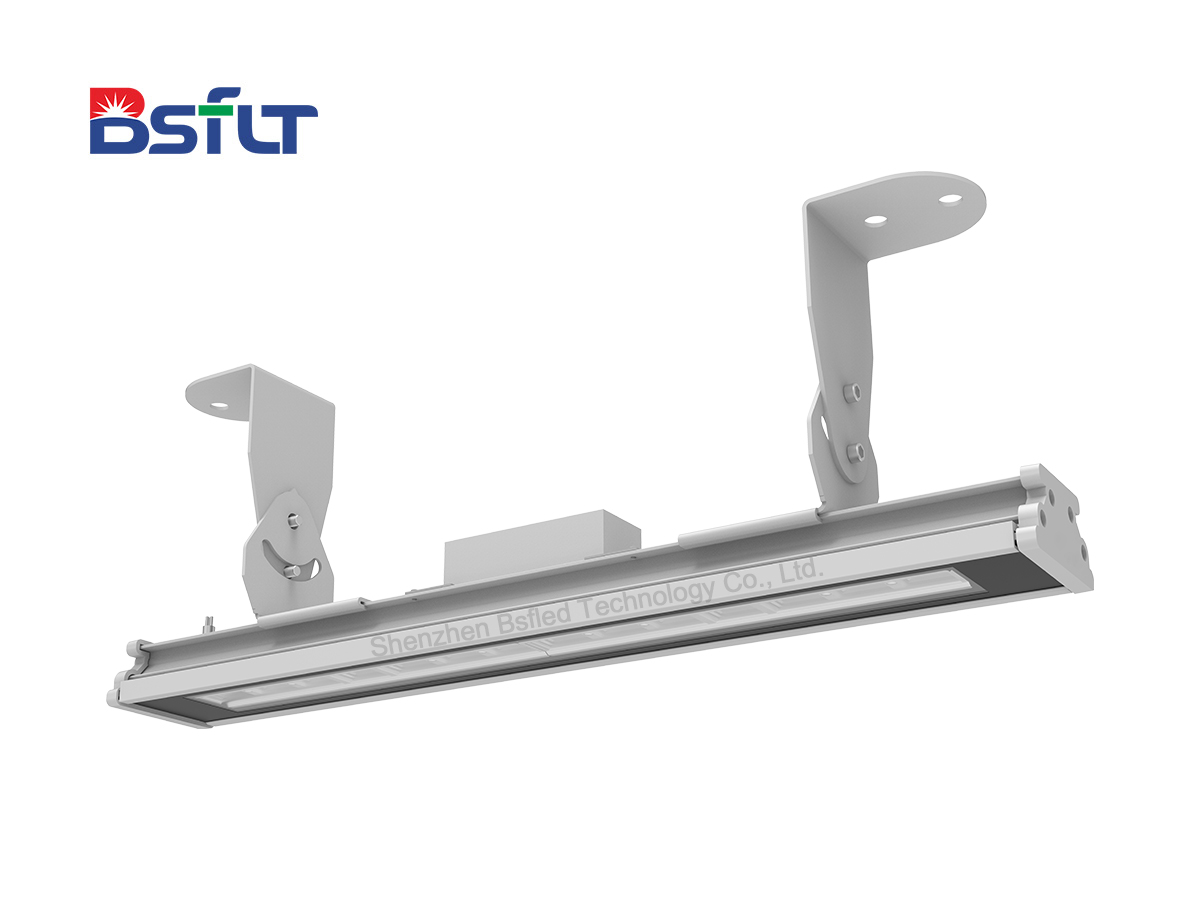

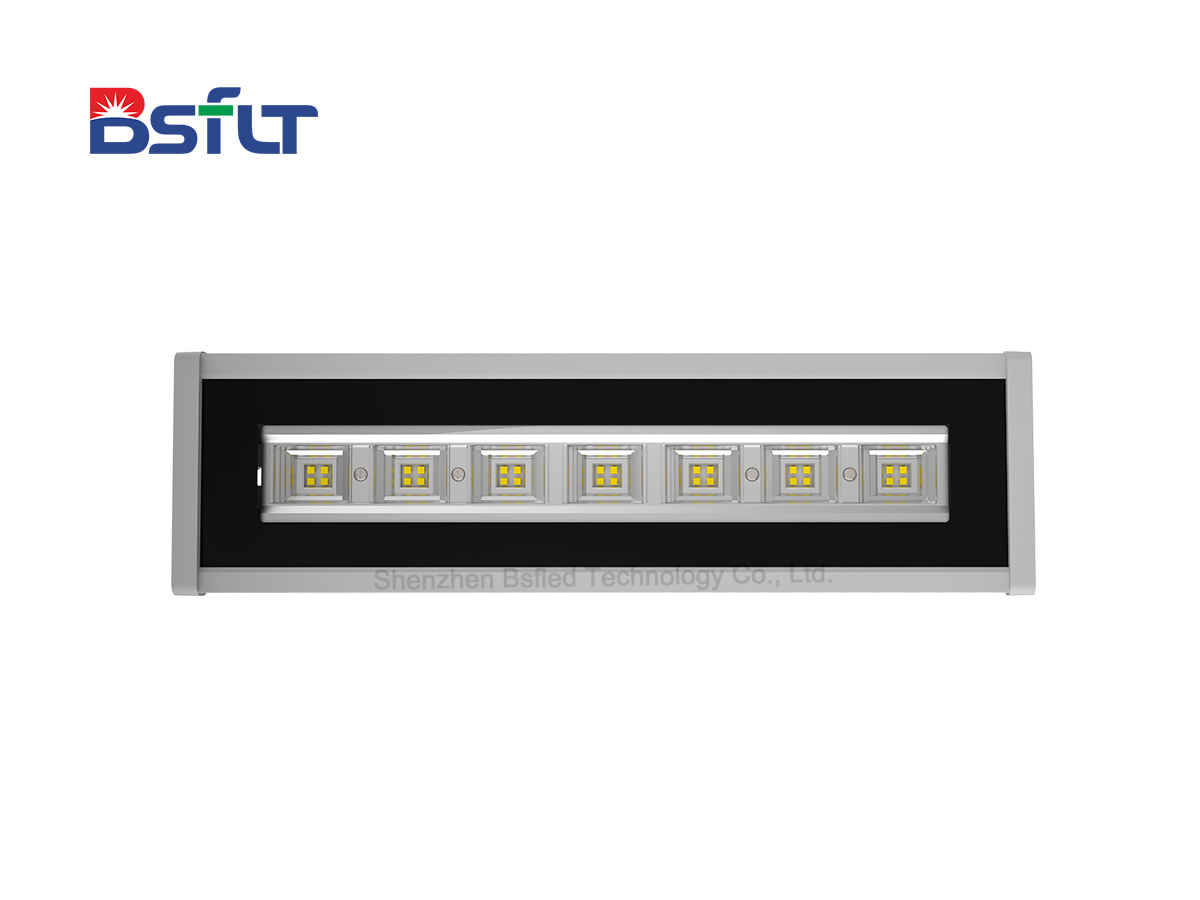

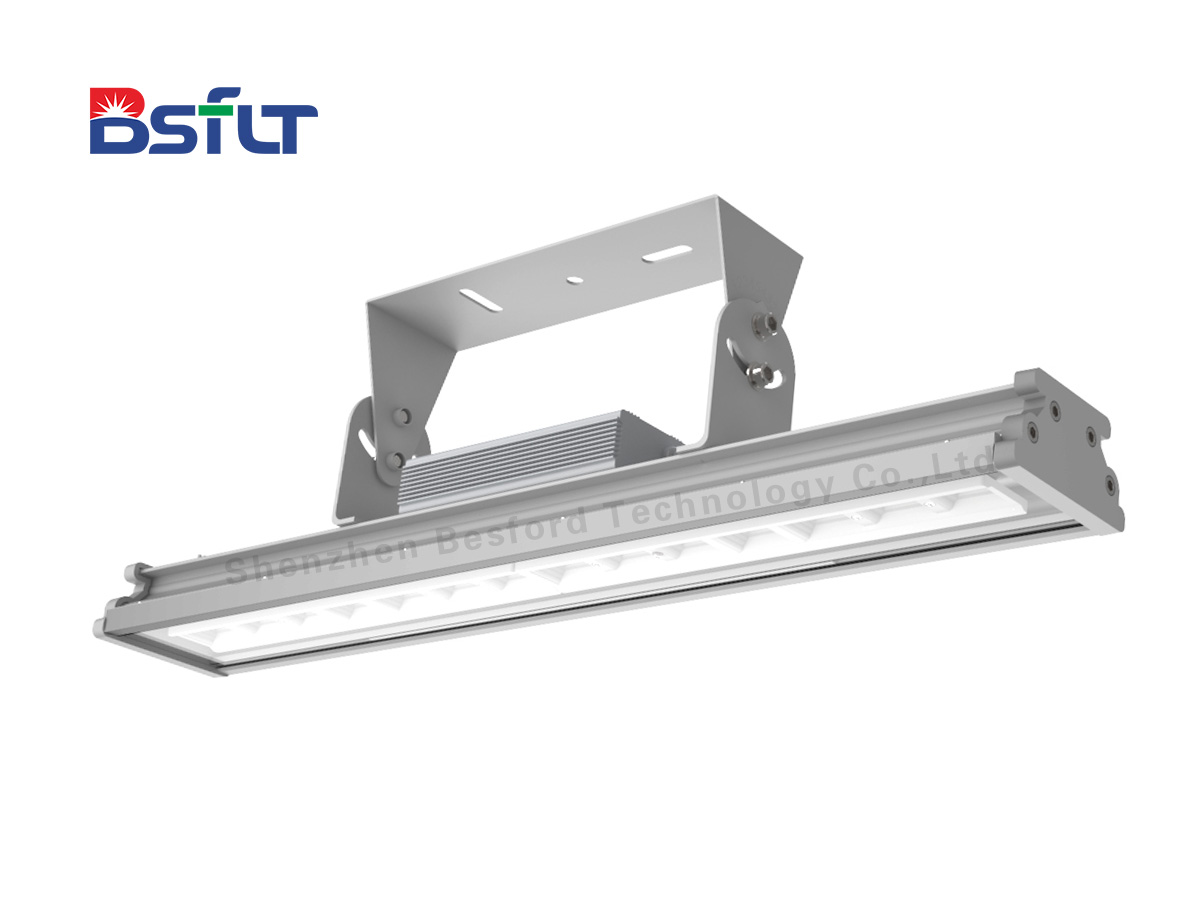

BTU1903 series tunnel lights use high-quality SMD LEDs as light sources. Tempered glass + reflector design, large light range. Independent external waterproof power supply, optional bracket, waterproof design of the overall structure, to ensure the reliability of the comprehensive performance of the product such as heat dissipation, waterproof and impact. After the product is installed, it has a rotating scale, which can directly adjust the best angle of irradiation required, which is convenient for construction and debugging
*Aluminum alloy lamp body, anti-compression and anti-fall, good corrosion resistance and excellent heat dissipation performance
*Ultra-white tempered glass with high light transmission, anti-aging, long life and high light transmittance
*Selected high-quality international brand lamp beads, high brightness, low light decay, high efficiency and energy saving
*Linear structure + reflector design, road uniformity > 0.88
*Separate design of power supply and lamp body
*Pure structure waterproof, the protection level is IP65
*Applicable environment -40° to 55°
*Comply with RoHS and CE standards
*Protection against electric shock: Class I
*Anti-corrosion grade: W
| Item | Power | 40W | 60W | 80W | 100W | 150W | 200W | 250w |
| General Performance | Efficiency | 120-150lm/W | ||||||
| CCT | 3000/4000/5000K | |||||||
| IP-Rating | IP65(wet location with Phtocell) | |||||||
| Electrical | Beam Angle | 110*95° | ||||||
LED Brand | SMD3030 PHILIS/ SEOUL/CREE | |||||||
| Driver Brand | PHILIS/MOSO/INVENTR/JUSON | |||||||
| Housing Material | Aluminium alloy | |||||||
| Qualification | Lifespan | 50000H | ||||||
| Warranty | 5 Years Warranty | |||||||
Widely used in tunnel,flyover,culvert,warehouse,construction site,etc.
