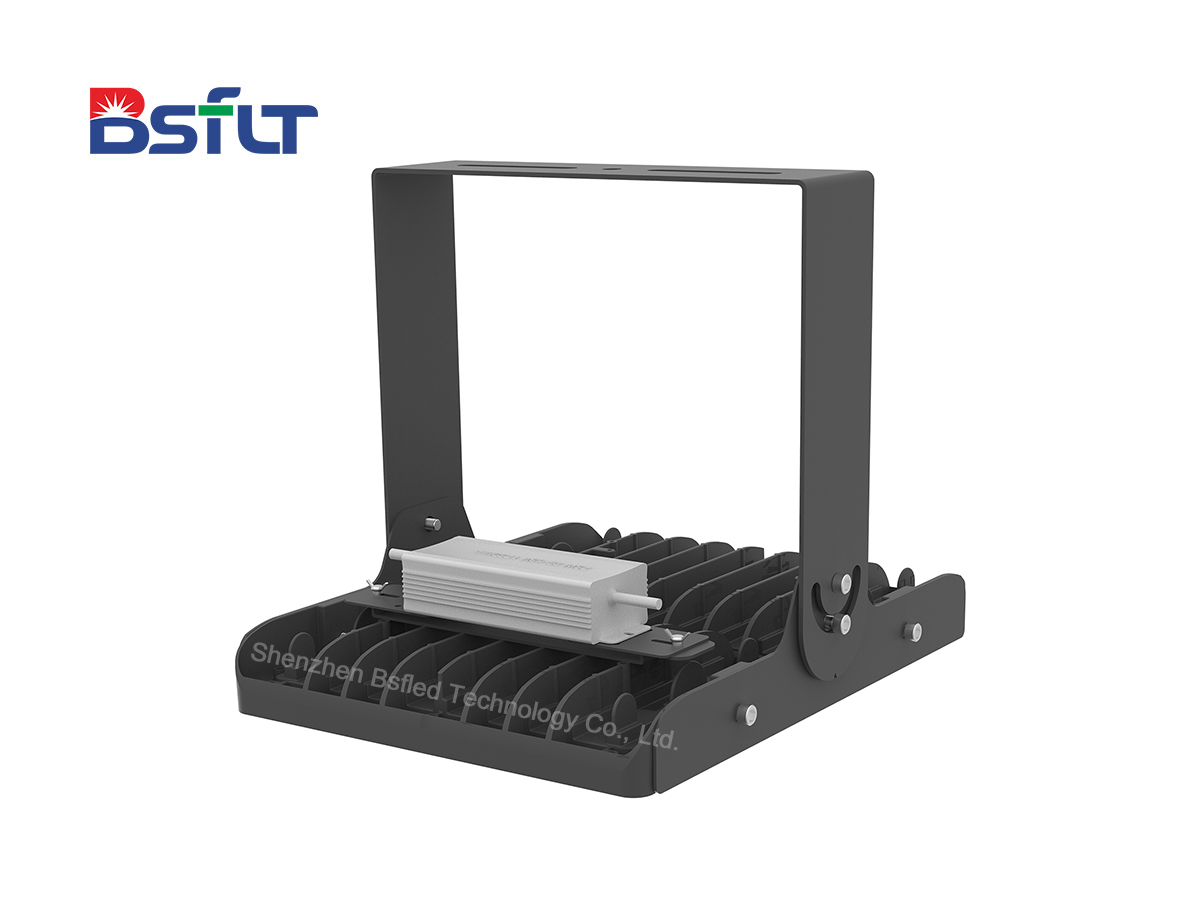

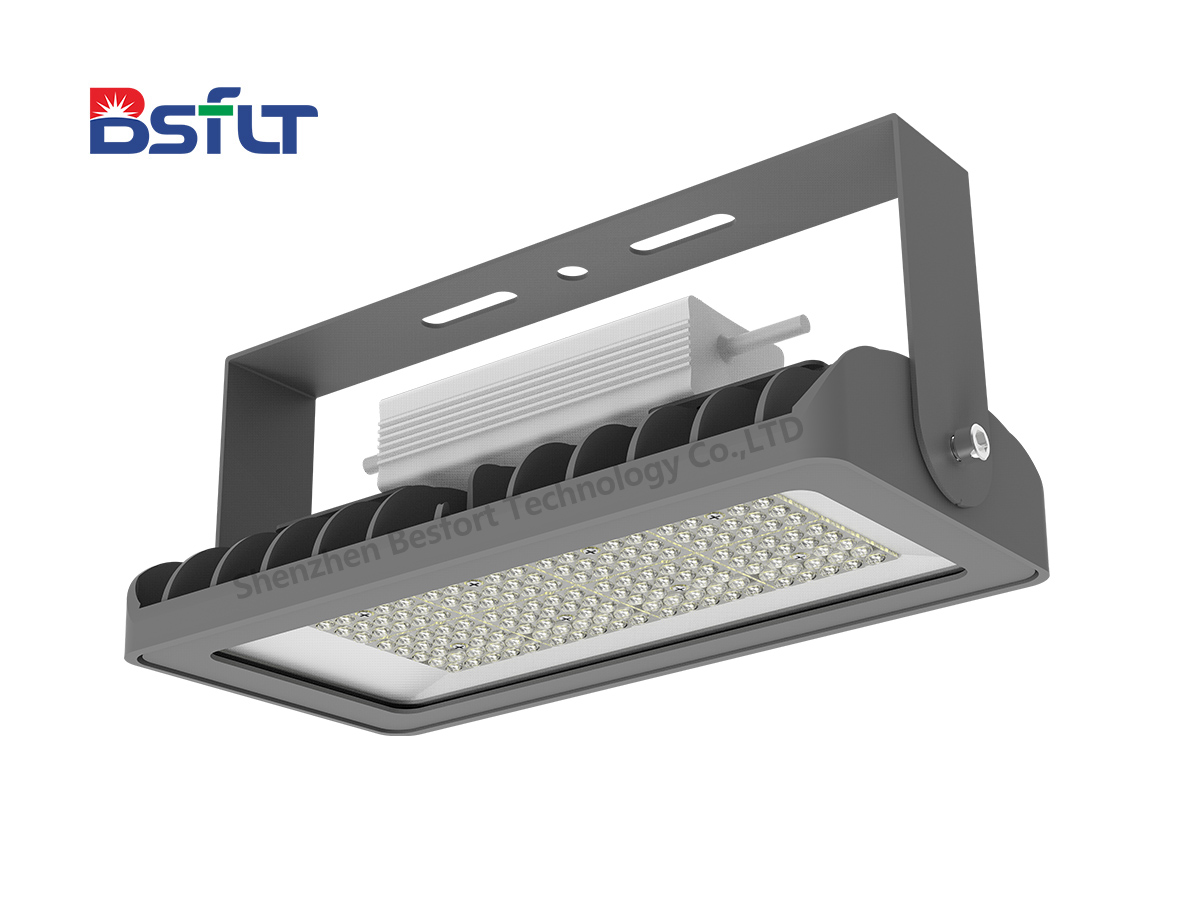

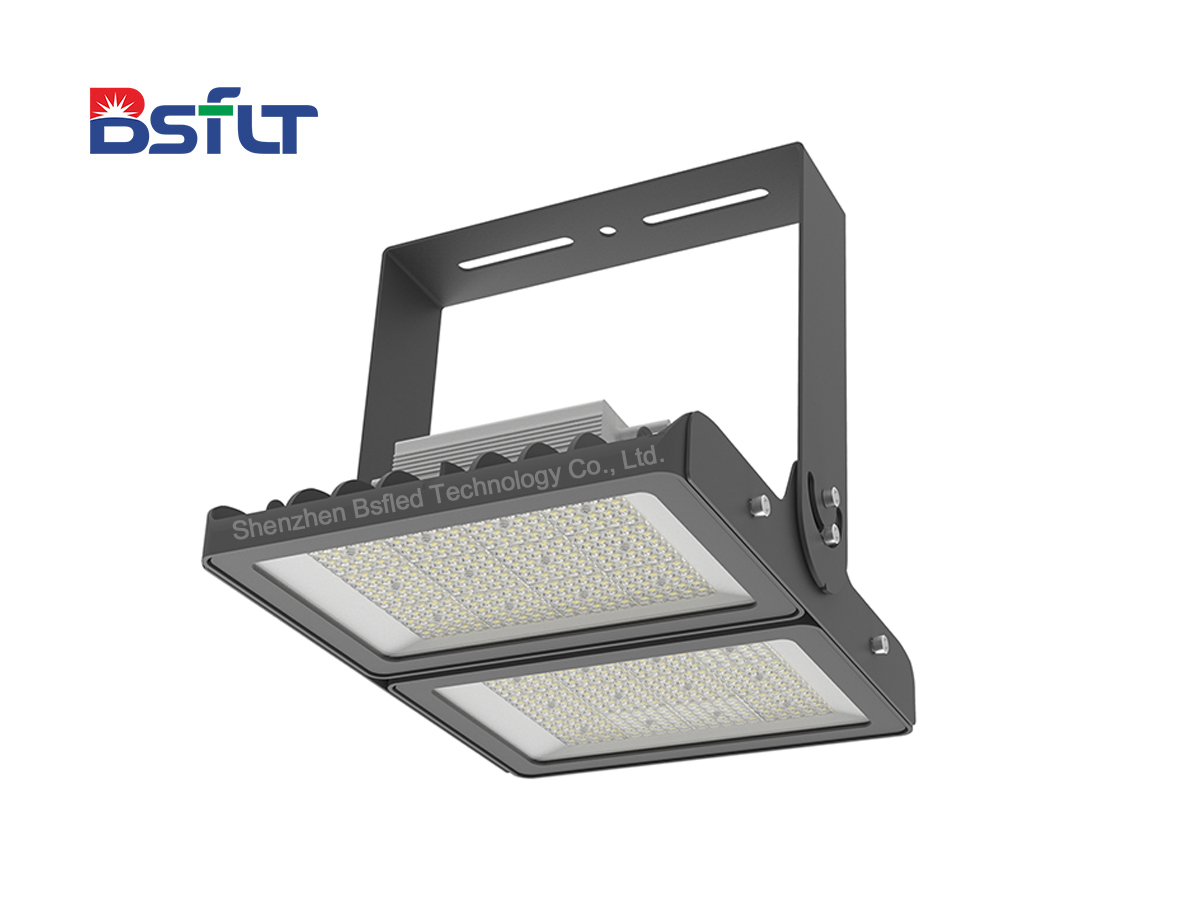

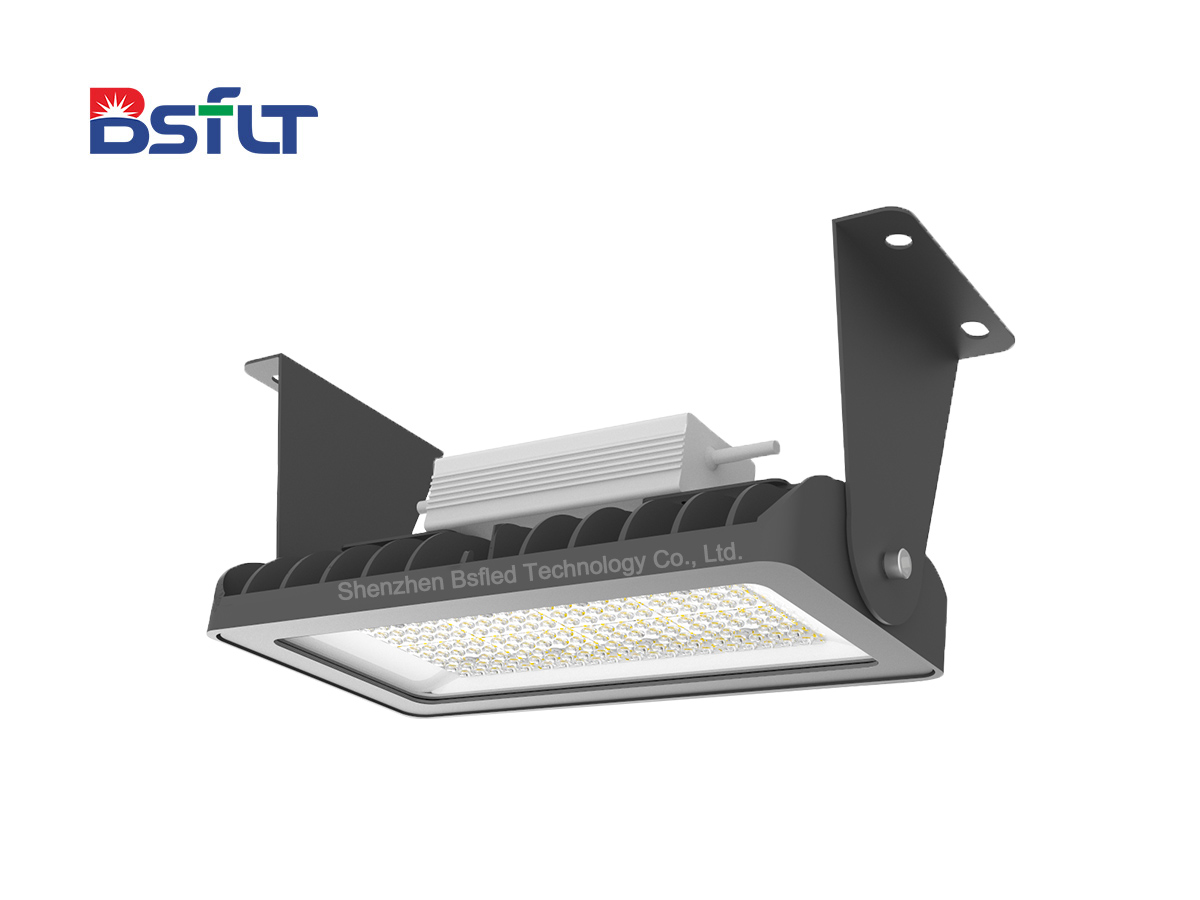

BTU2003 series tunnel lights use high-quality SMD LED as the light source, independent external waterproof power supply, easy to disassemble and replace. The waterproof design of the overall structure ensures the reliability of the comprehensive performance of the product such as heat dissipation, waterproof and impact. The product is equipped with a rotating scale after installation, and the product lens is designed with ultra-white glass and a reflector, with high light transmittance, anti-glare, and a large illumination range.
*High-quality ADC12 aluminum alloy lamp body, one-piece die-casting process, anti-corrosion, strong impact resistance

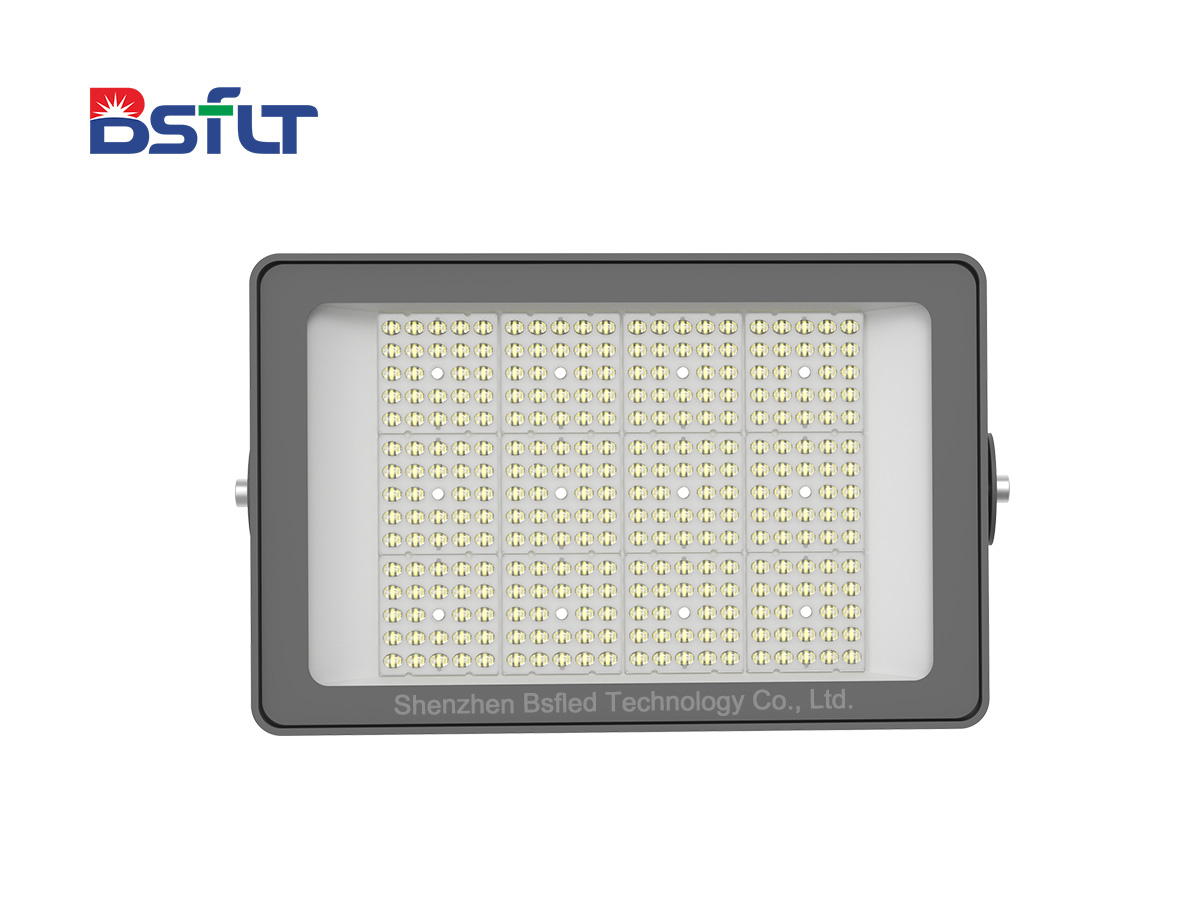

*Selected high-quality international brand lamp beads, high brightness, low light decay, high efficiency and energy saving
*The lens adopts tempered glass + reflector design, high light transmittance, anti-glare, and large illumination range
*Adopt respirator design to solve condensation and fogging phenomenon and improve light quality

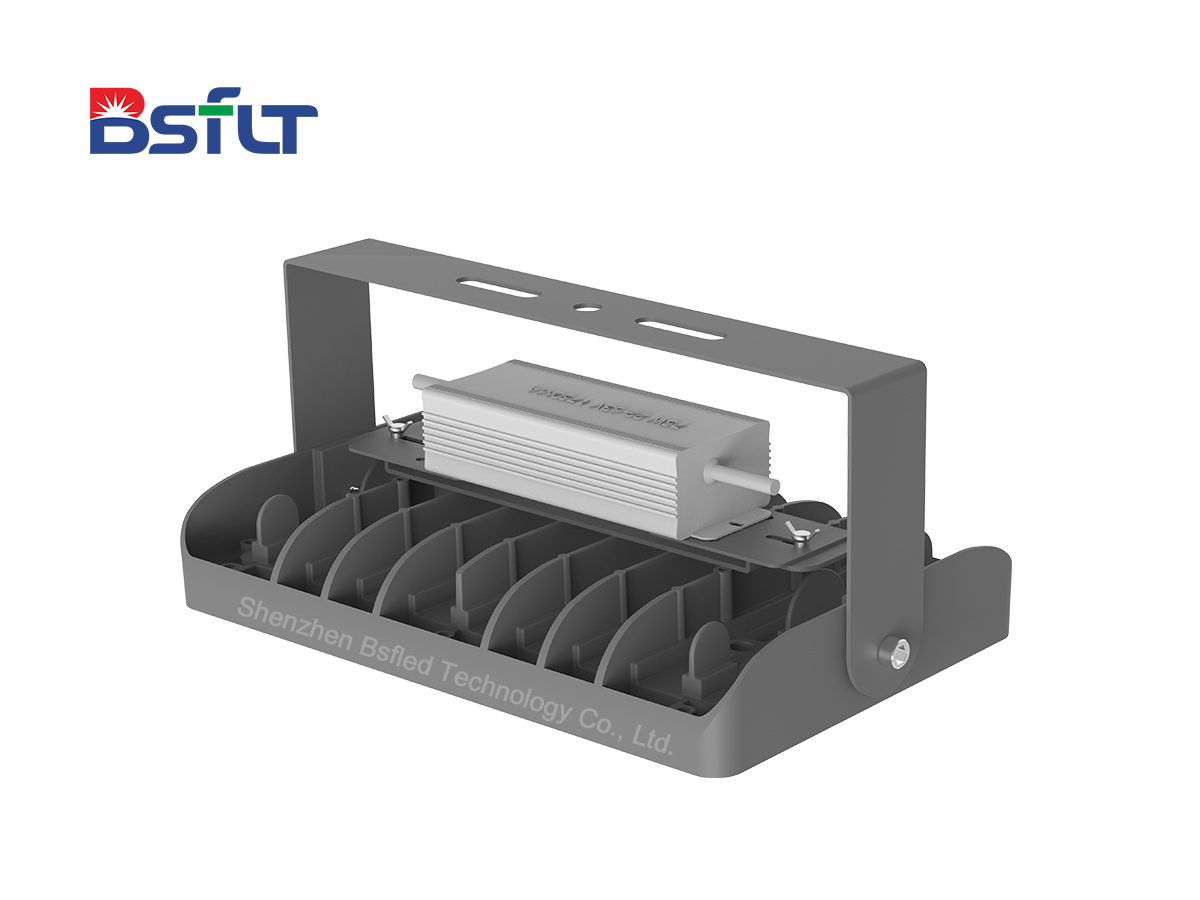

*The power supply can be disassembled and replaced by hand, which is convenient for installation and maintenance
*Pure structure waterproof, the protection level is IP65
*Applicable environment -40° to 55°
*Comply with RoHS and CE standards
*Protection against electric shock: Class I
*Anti-corrosion grade: W
| Item | Power | 30W | 40W | 50W | 60W | 80W | 100W | 120W | 150W | 180W | 200W | 240W | 260W | 280W | 300W | 320W |
| General Performance | Efficiency | 120-150lm/W | ||||||||||||||
| CRI | Ra＞70 | |||||||||||||||
| CCT | 3000/4000/5000K | |||||||||||||||
| IP-Rating | IP65(wet location with Phtocell) | |||||||||||||||
| Electrical | Beam Angle | 75*150 | ||||||||||||||
LED Brand | SMD3030 PHILIS/ SEOUL/CREE | |||||||||||||||
| Driver Brand | PHILIS/MOSO/INVENTR/JUSON | |||||||||||||||
| Housing Material | ADC12 | |||||||||||||||
| Qualification | Lifespan | 50000H | ||||||||||||||
| Warranty | 5 Years Warranty | |||||||||||||||
Widely used in tunnel,flyover,culvert,warehouse,construction site,etc.
